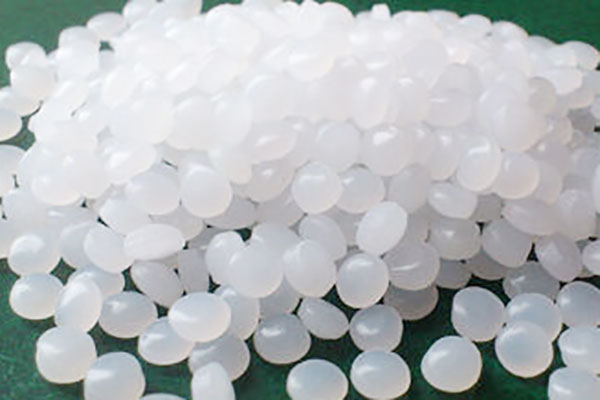

SABIC P6006NA HDPE is a PE100 pipe-grade raw material. Its core advantage lies in its multi-peak molecular weight distribution design, balancing rigidity and toughness. It meets the strength requirements of high-pressure pipelines while possessing excellent processability, providing a reliable guarantee for the production of various pipe products.
SABIC P6006NA HDPE PE100 Technical Specification
| PROPERTIES | TYPICAL VALUES | UNITS | TEST METHODS |
| Melt Flow Rate (MFR) | |||
| @ 190°C & 5 kg load | 0.23 | g/10 min | ISO 1133 |
| @ 190°C & 21.6 kg load | 6.2 | g/10 min | ISO 1133 |
| Density at 23°C | 949 | kg/m³ | ASTM D1505 |
| Hardness (Shore D) | 63 | – | ASTM D2240 |
| Tensile Strength at Yield | 23 | MPa | ASTM D638 |
| Tensile Elongation at Yield | 10 | % | ISO 527-1/-2 |
| Tensile modulus | 850 | MPa | ASTM D638 |
| Charpy Impact Notched @ 23°C | 25 | kJ/m² | ISO 179 |
| Flexural Creep Modulus (4point,1min) | 1050 | MPa | DIN 19537-2 |
| Vicat Softening Point @ 50N (VST/B) | 74 | °C | ISO 306 |
| OIT (210°C) | >20 | Minutes | EN 728 |
What are the performance advantages of SABIC P6006NA PE100?
- SABIC P6006NA HDPE PE100 achieves a perfect balance between high rigidity and high toughness, with a tensile strength of 23MPa and a Shore hardness (D) of 63, enabling it to withstand external impacts during high-pressure transportation and reducing the risk of pipeline damage.
- Its excellent chemical resistance resists corrosion from acids, alkalis, and organic solvents, making it suitable for transporting various media such as drinking water, industrial wastewater, and natural gas.
- It also possesses good electrical insulation properties, making it suitable for use in electrical protection scenarios such as telecommunications pipelines.
- Furthermore, this material exhibits outstanding low-temperature resistance, maintaining good toughness even in low-temperature environments. It meets food contact compliance requirements, is odorless, non-toxic, environmentally friendly, and recyclable.
What are the application areas of SABIC P6006NA HDPE?
In municipal engineering, it can be used for laying underground telecommunications pipelines and drainage corrugated pipes, extending pipeline lifespan due to its anti-aging and anti-settlement properties.
In the industrial sector, it can be used in the manufacture of industrial pressure pipelines and chemical containers, ensuring the safe transport of industrial media through its chemical corrosion resistance and high strength.
In the consumer sector, it can be used in food packaging containers and household pipe fittings, meeting safety and environmental protection requirements. This product is also suitable for emergency engineering pipeline construction, meeting the quality requirements for pipeline-specific materials in international emergency material procurement systems, making it a preferred raw material for emergency rescue and post-disaster reconstruction projects.
What processing techniques are primarily compatible with P6006NA resin?
This product is compatible with various processing techniques such as extrusion, injection molding, and blow molding. It is best suited for the extrusion production of telecommunications conduits, corrugated pipes, and spiral pipes. It can also be used for injection molding and blow molding of food-contact containers and industrial parts.
Can PE100 P6006NA be used in the production of food-contact pipes?
Yes, it can be used in the production of food-contact containers. P6006NA resin is odorless, non-toxic, and meets food contact safety requirements. Original Certificate of Analysis (COA) and food contact compliance certificates, among other relevant documents, can be provided.
SABIC P6006NA VS. P6006AD
| Item | SABIC P6006NA HDPE | SABIC P6006AD HDPE |
| Grade | PE100 | PE112 |
| Density at 23°C | 0.949kg/m³ | 0.959kg/m³ |
| MFR（190℃/21.6kg） | 6.2g/10min | 6.4g/10min |
| Tensile Strength at Yield | 23MPa | 23MPa |
| Appearance | Natural color, No carbon black addition | Black granular，with 2.25% carbon black |
| Main applications | Suitable for PE100 grade conventional pressure pipeline | Focus on the PE112 grade high-pressure and high-weather-resistant pipeline |
