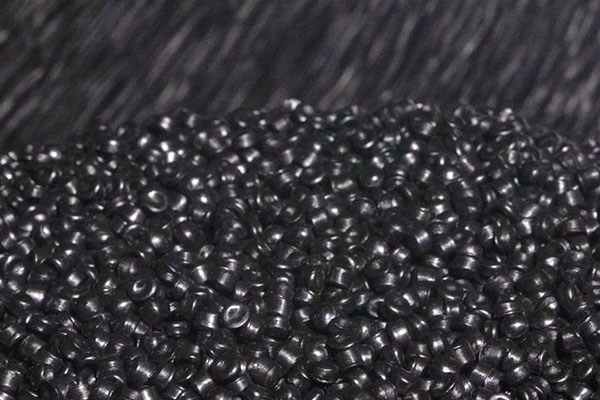

SABIC P6006 PE100 black granular is a bimodal HDPE resin specifically designed for pressure pipelines. It is clearly classified as PE100 grade (MRS 10MPa) and conforms to ASTM PE4710, ISO international standards. Its core positioning is as a raw material specifically for conventional high-pressure pipelines. Compared to similar PE100 grade natural-colored raw materials (such as Sabic P6006NA), its most significant feature is the addition of 2.25% uniformly dispersed carbon black, presenting a standard black composite granular form. The addition of carbon black not only enhances the UV resistance and anti-aging properties of P6006 PE100, but also makes it suitable for complex working conditions such as long-term outdoor exposure and deep underground burial. Simultaneously, it retains the balance of rigidity and toughness of HDPE materials, taking into account both ease of processing and safety of use, adapting to the pipeline production needs of multiple industries.
SABIC P6006 PE100 Black Granule Technical Specification
| PROPERTIES | TYPICAL VALUES | UNITS |
| POLYMER PROPERTIES | ||
| Melt Flow Rate (MFR) | ||
| @ 190°C & 5 kg load | 0.23 | g/10 min |
| @ 190°C & 21.6 kg load | 6.2 | g/10 min |
| Carbon black content | 2.25 | % |
| Density at 23°C | 959 | kg/m³ |
| MECHANICAL PROPERTIES | ||
| Tensile Strength at Yield | 23 | MPa |
| Tensile Elongation at Yield | 9 | % |
| Tensile modulus | 900 | MPa |
| Charpy Impact Notched @ 23°C | 26 | kJ/m² |
| Charpy Impact Notched @ -30°C | 13 | kJ/m² |
| Hardness (Shore D) | 63 | – |
| THERMAL PROPERTIES | ||
| Vicat Softening Point @ 50N (VST/B) | 74 | °C |
| OIT (210°C) | >20 | Minutes |
What are the applications of SABIC P6006 PE100 black granules?
Municipal conventional high-pressure pipelines. Core applications include drinking water pipelines, conventional natural gas pipelines, and underground drainage pipelines. It can also be used in municipal irrigation pipelines, suitable for long-term outdoor use.
Industrial conventional pipelines. Used for industrial wastewater pipelines, general industrial pressure pipelines, chemical linings, and container manufacturing. Suitable for conventional operating conditions in industrial production, without the need for high-pressure withstand capabilities.
Agricultural irrigation pipelines. Suitable for high-pressure agricultural irrigation pipelines exposed to the elements for extended periods. The black granule’s UV resistance and anti-aging properties allow it to adapt to various climatic environments.
Conventional corrugated and spiral pipe production. With its excellent processing fluidity, it can be used for the extrusion production of complex pipe structures such as corrugated and spiral pipes. The black material has a uniform appearance and ensures the pipe’s anti-aging properties.
Emergency and temporary pipelines. It can be used as a standard pipeline material for emergency rescue and post-disaster reconstruction projects, suitable for temporary high-pressure transportation needs, and is easy to store and process quickly.
What are the superior properties of SABIC P6006 HDPE pipe grade?
- Excellent anti-aging performance.The addition of 2.25% uniformly dispersed carbon black effectively resists UV radiation and environmental aging. Compared to natural-colored PE100 raw materials, its anti-aging performance is significantly improved, allowing it to adapt to complex environments such as long-term outdoor exposure and deep underground burial. It is less prone to embrittlement, cracking, and performance degradation, greatly extending pipeline lifespan and reducing later maintenance costs. Simultaneously, the uniform carbon black dispersion does not affect the material’s processing performance and mechanical strength, ensuring pipeline molding quality.
- PE100-grade high-pressure resistance and balanced mechanical properties.As a standard PE100-grade HDPE, the minimum required strength (MRS) reaches 10MPa. Under conditions of 20℃ and a 50-year service life, it can stably withstand 10MPa pressure, meeting the strength requirements of conventional high-pressure pipelines. Utilizing a bimodal molecular weight distribution design, it balances the processing fluidity of the low molecular weight portion with the mechanical strength of the high molecular weight portion. The tensile strength can reach up to 28MPa, exhibiting excellent toughness and withstanding deformation caused by external impact and soil settlement, making it suitable for various complex installation scenarios.
- Convenient processing and strong adaptability. The melt flow rate is compatible with conventional extrusion molding processes, exhibiting moderate fluidity under high loads. It is suitable not only for the production of conventional pipelines such as drinking water and gas pipelines, but also for the extrusion processing of complex pipe structures such as corrugated pipes and spiral pipes. It boasts high molding efficiency, a smooth and defect-free pipe surface, and uniform carbon black dispersion that does not affect processing stability. It is also compatible with various processes such as injection molding and blow molding, and can be used for chemical linings, container manufacturing, and other applications, meeting the production needs of multiple industries.
- Chemical corrosion resistance, suitable for multi-media transportation.It possesses excellent chemical corrosion resistance, resisting the erosion of various media such as acids, alkalis, organic solvents, and industrial wastewater. It exhibits no electrochemical corrosion, making it suitable for the transportation needs of various media such as drinking water, conventional natural gas, industrial wastewater, and irrigation water. It also possesses good electrical insulation properties, making it suitable for simple electrical protection pipeline applications.
- Excellent cost-effectiveness, suitable for conventional working conditions.As a general-purpose PE100 grade HDPE black granule, it offers a more cost-effective alternative to PE112 grade black granules (such as P6006AD), while meeting the performance requirements of most conventional high-pressure pipelines. Balancing quality and cost-effectiveness, it is a high-performance choice for conventional pipeline projects in municipal, industrial, and agricultural sectors.
Sabic P6006 Black Granule VS. Sabic P6006NA White Granule
| Item | SABIC P6006 PE100 black | SABIC P6006NA PE100 white |
| Appearance | Black compound granule, with 2.25% carbon black | Natural-color granule, with no carbon black |
| Anti-aging performance | Excellent, capable of withstanding long-term outdoor exposure and deep underground burial, and not prone to cracking or breaking. | Generally, it is not tolerant to long-term ultraviolet radiation and is prone to aging and degradation. |
| Main applications | Municipal, industrial, agricultural outdoor/underground pipelines, complex conditions | Indoor piping, dark-light scenes, and scenes with specific color requirements |
| Pipe appearance | The pipe color is uniform, no additional coloring is required, and the appearance consistency is very strong. | It can be dyed as needed, and an additional dyeing process is required. |
